Large thermocouple model AM according to DIN EN 50446

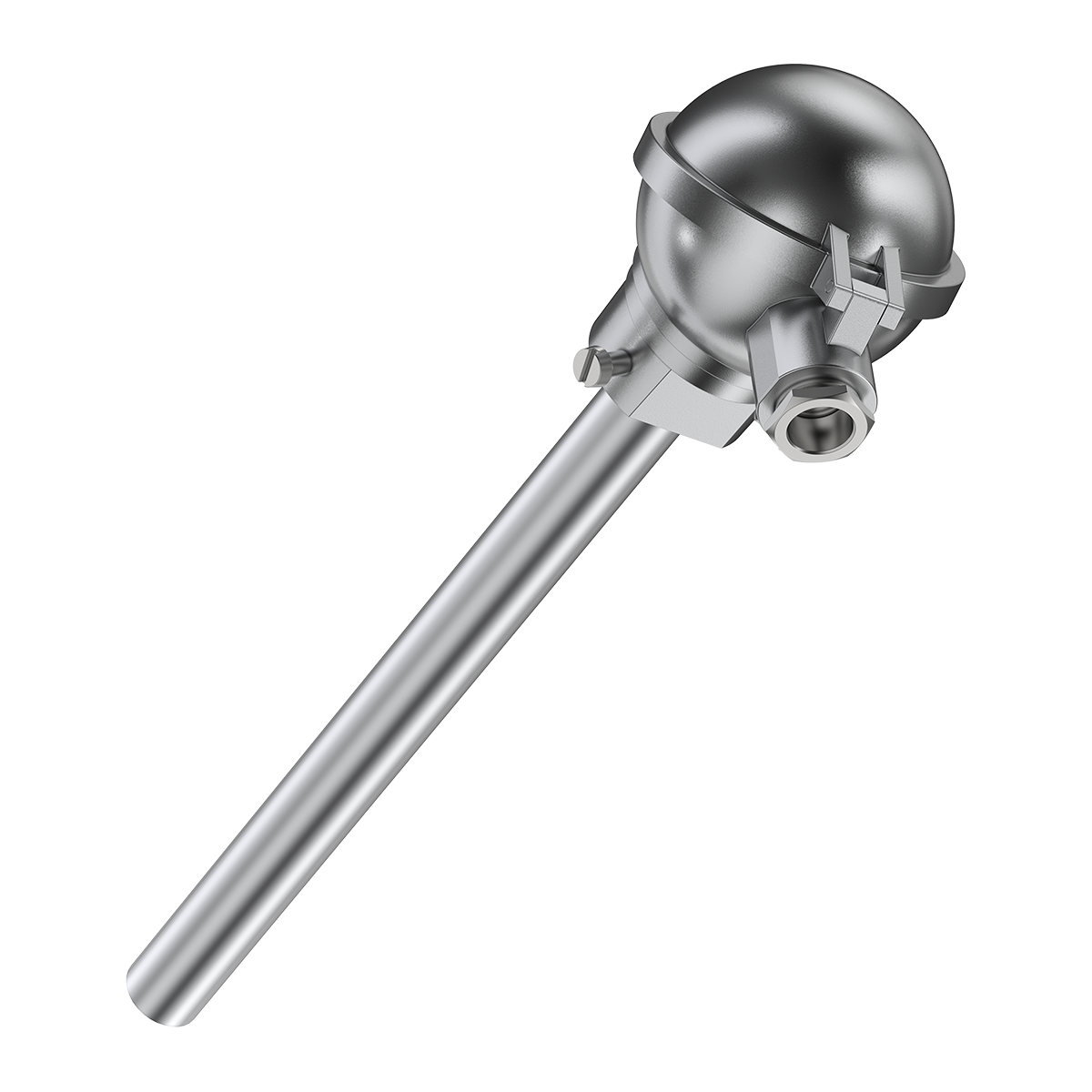

Straight thermocouple with metal protection tube, connection head in Form A and MIT measuring insert (model AM)

  • Under certain conditions, use in hazardous areas is possible on request.
  • Process connection with separate stop flange, gas-tight threaded socket or welded-on flange.
  • Area of application: Glass industry, steel/iron, aluminium/non-ferrous metal industry, industrial furnace construction, automotive industry, heat treatment, plant/mechanical engineering, energy, waste incineration/recycling, cement/building materials.
  • Measuring range up to 1200°C depending on protection tube material and thermocouple.
  • Preferred protection tube material 1.4841, preferred diameter 15 or 22 mm.
  • Measuring insert exchangeable similar to DIN 43735.
  • Thermocouples according to DIN EN 60584-1, insulated welded.
  • For comparison measurements, also with optional test hole.
  • On request with calibration (also according to AMS 2750 or CQI 9) in our laboratory accredited according to DIN EN 17025 (measured variable temperature)

Online request / Configurator

large thermocouple with matal protection tube and MIT measuring insert
