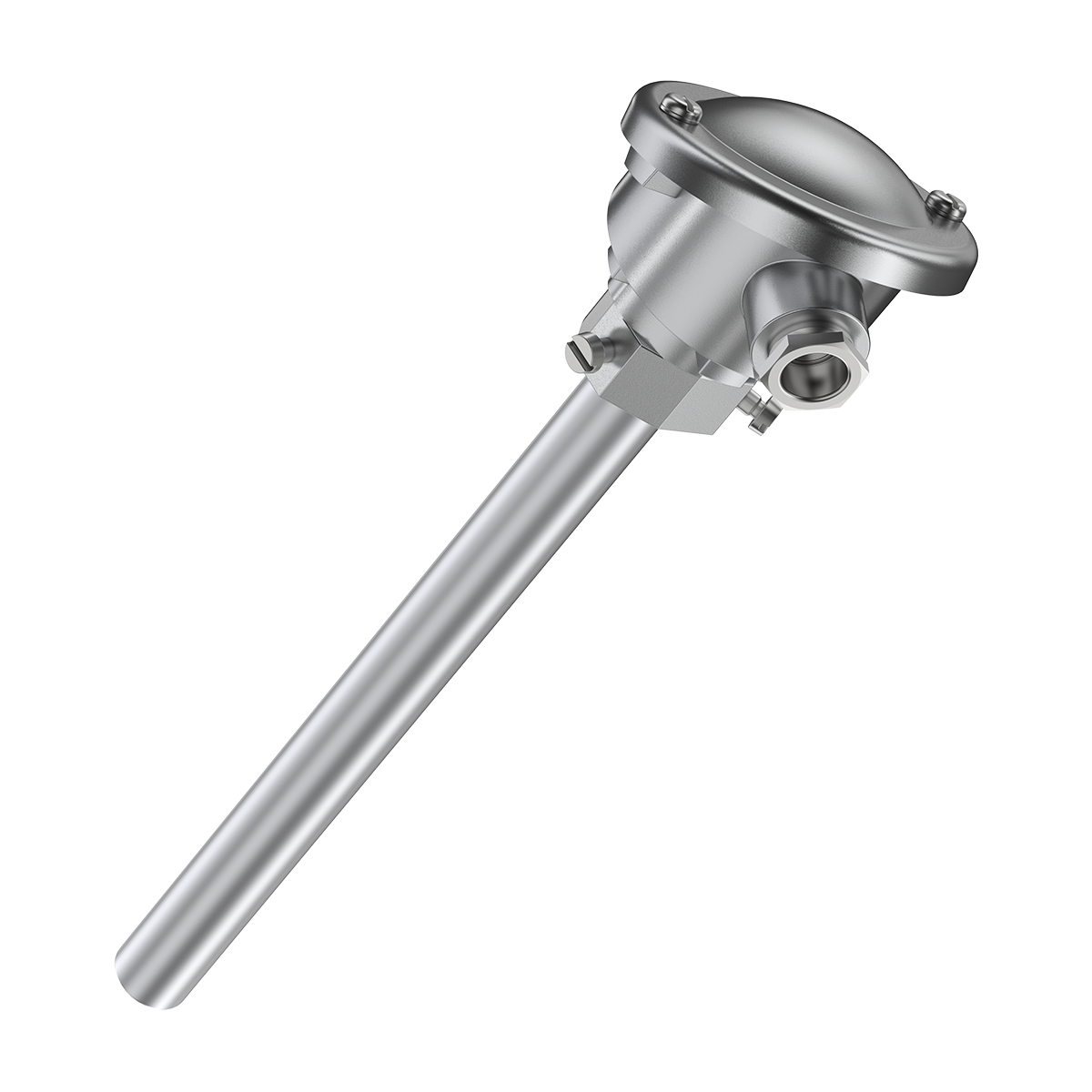

Large thermocouple model AMK according to DIN EN 50446
straight thermocouple with metal protection tube, connection head in model A and TC wire

  • Under certain conditions, use in hazardous areas is possible on request.
  • Process connection with separate stop flange, gas-tight threaded socket or welded-on flange: Area of application: Glass industry, steel/iron, aluminium/non-ferrous metal industry, industrial furnace construction, automotive industry, heat treatment, plant/mechanical engineering, energy, waste incineration/recycling, cement/building materials.
  • Measuring range up to 1200°C depending on protection tube material and thermocouple.
  • Preferred protection tube material 1.4841, preferred diameter 22 or 26 mm.
  • 1 or 2 thermocouples acc. to DIN EN 60584-1, ceramic insulated, 2. Sensor e.g. for temperature recording or overtemperature monitoring.
  • For comparison measurements, also with optional test hole.
  • On request with calibration (also according to AMS 2750 or CQI 9) in our accredited laboratory according to DIN EN 17025 (measured variable temperature)

"


Online request / Configurator

Thermocoulpe with metal protection tube and TC wire
